Embedded computer In-tel Core i3 i5 i7 N2940 N2840 for Edge Computing Dual Lan Triple display Industrial Fanless mini pcs
€173.09
|
Welcome to Shenzhen SHAREVDI Technology
SHAREVDI starts with RDP Thin Client products,model R1 is especially developed for education industry,it features very reasonable price and stable quality,popular used in multi-media classroom and labs. For the field of fanless MINI PC,NANO PC K1 and K6 are our STAR models,the average annual export volume is more than 100,000pcs of every model per year. Our target is to provide HIGH QUALITY products with reasonable value to our distributors and agency,in recent years SHAREVDI team focus on more new type of PCs like industrial computer and rugged panel PC,we also won lots of projects from government and enterprise with very good feedbacks,welcome to join us for more innovative computer products business! Come on! |
||
|
OEM & ODM Service
>>>Contact us<<< |
||
|
OEM
|
1. logo printing on housing
2. Customize package 3. Software Customization: Booting image, UI, APP, Function… and so on |
|
|
ODM
|
1. PCBA desgin
2. Housing desgin 3. Software Customization: Booting image, UI, APP, Function… and so on |
|
* System Size : 197mm x 127mm x 47.5mm
* Intel® core® i3 i5 Processor
* Dual Channel DDR3L, 2 x SO-DIMMs

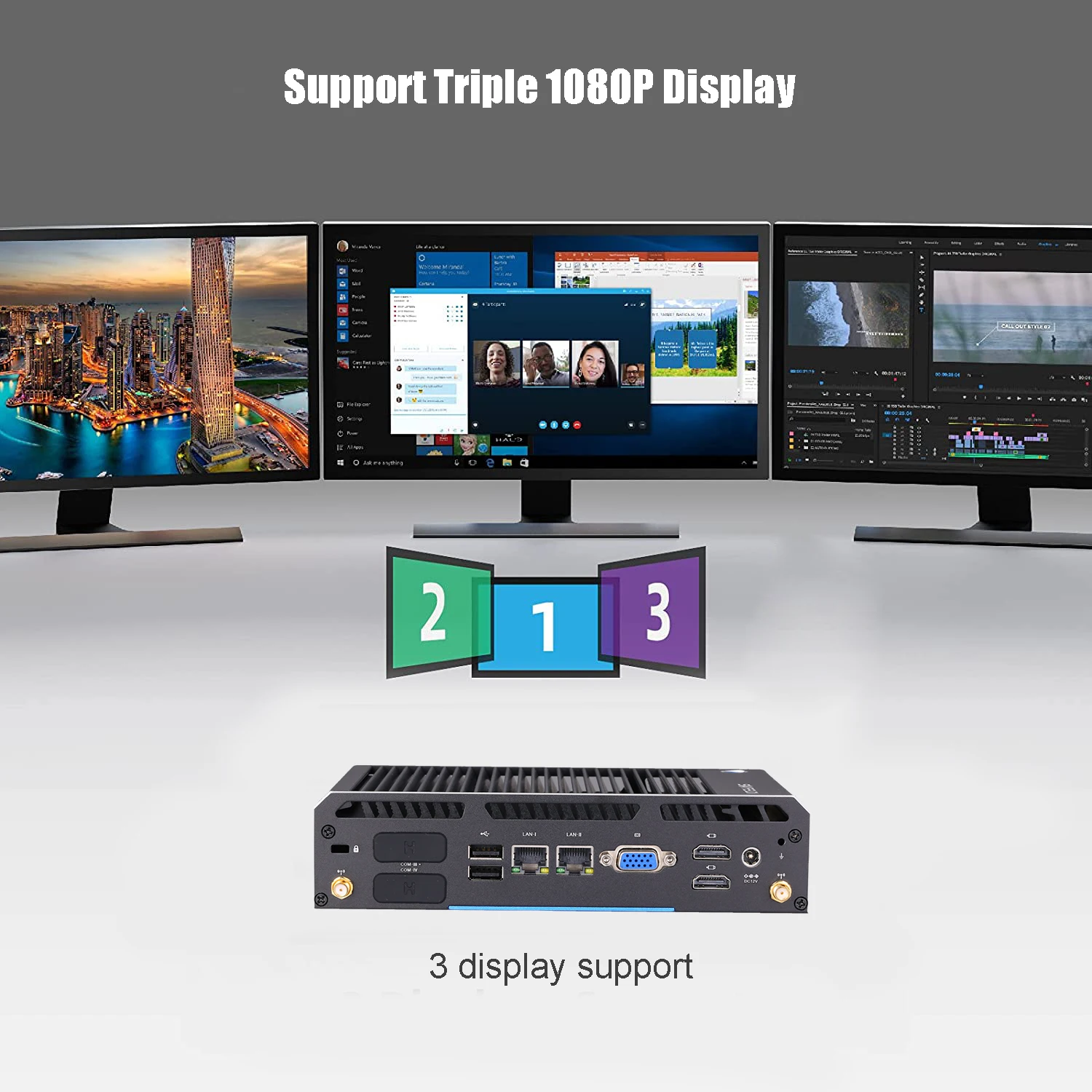

* HD-MI, VGA for three display

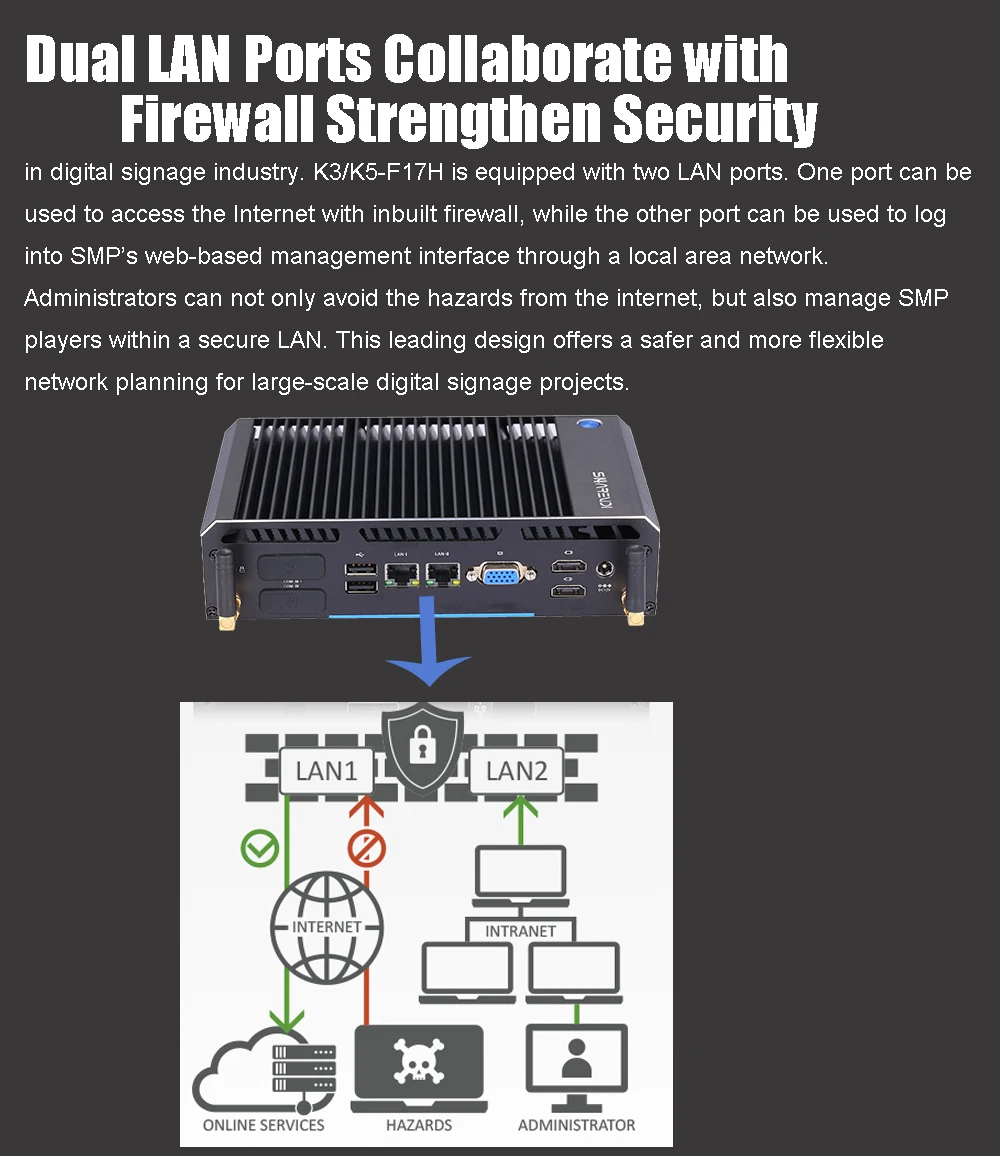

* 2 x GbE LAN ports
* Embedded & Industrial Applications
* IoT System
* Factory Automation
* KIOSK / POS
* Healthcare
|
Model
|
K3-K17H
|
K5-K17H
|
|
|
CPU
|
Intel core i3 5th/6th/8th/10th Gen
|
Intel core i5 5th/6th/8th/10th Gen
|
|
|
Dimension
|
197.5mmx127mmx47.5mm
|
||
|
Memory
|
2 x DDR3L SO-DIMM socket, Max. Capacity 16 GB
|
||
|
Ethernet
|
2 x GbE LAN port (Realtek® RTL8111E)
|
||
|
Storage
|
1 x 2.5’’ HDD/SSD (SATA 6 Gb/s)
|
||
|
Front I/O for Standard version
|
4*USB
Type-C

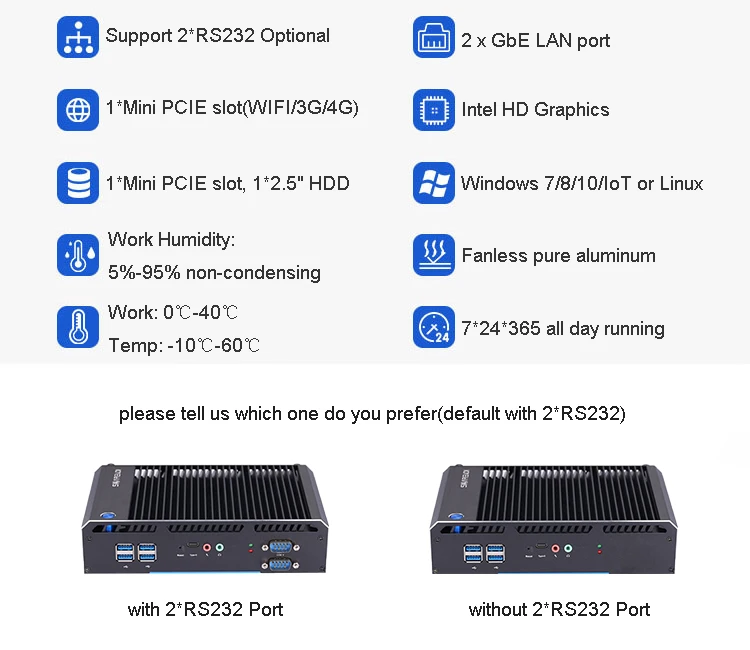

2*RS232
|
||
|
Rear I/O for Standard version
|
2*HD+VGA
2*USB
|
||
|
Power
|
12V 5A
|
||
|
Operation Temperature
|
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing) Non-operating temperature:-40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
||
|
Operating System
|
Windows IoT pro & Linux
|
||
|
Optional Kit
|
TPM 2.0 module
|
||
|
application
|
designed as palm-sized, fan-less and ruggedized computing solution dedicated to thin client, POS, KIOSK, smart factory

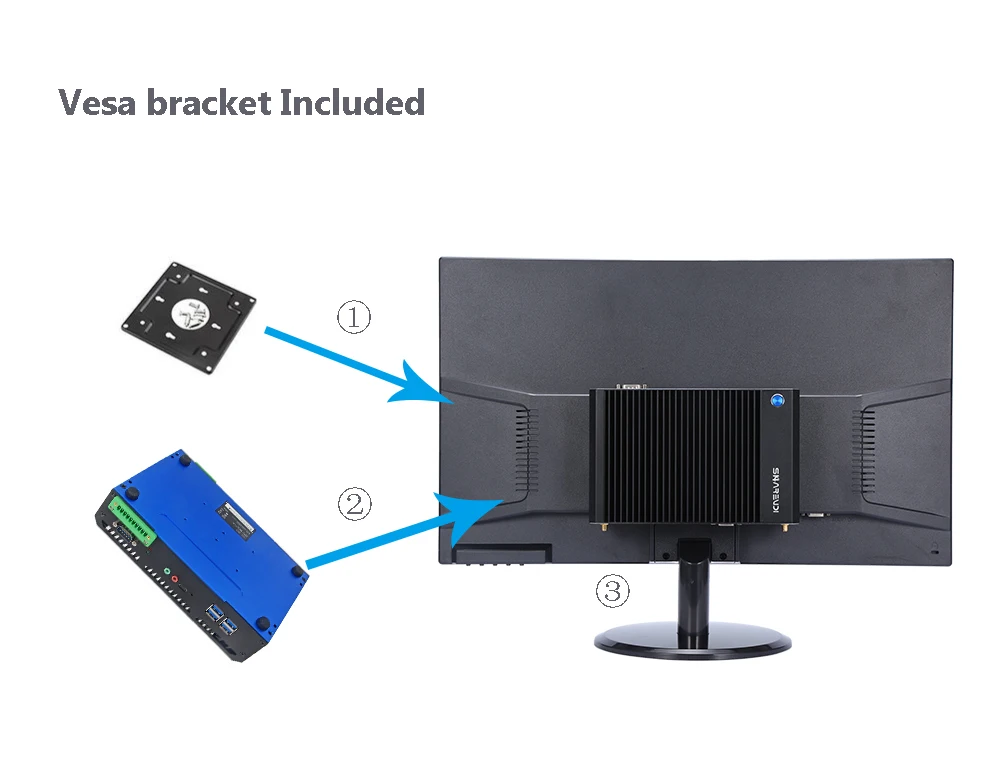

automation, industrial controller system and space-limited applications, with VESA mout 75×75 and 100×100 for options . |
||
this year K1 device won recognition in the field of indoor digital signage, here is our successful case sharing:the following are the customer’s live photo sharing, and our K1 motherboard is used as the digital display player in the elevator and shopping mall.
| Model Number | F17H |
|---|
