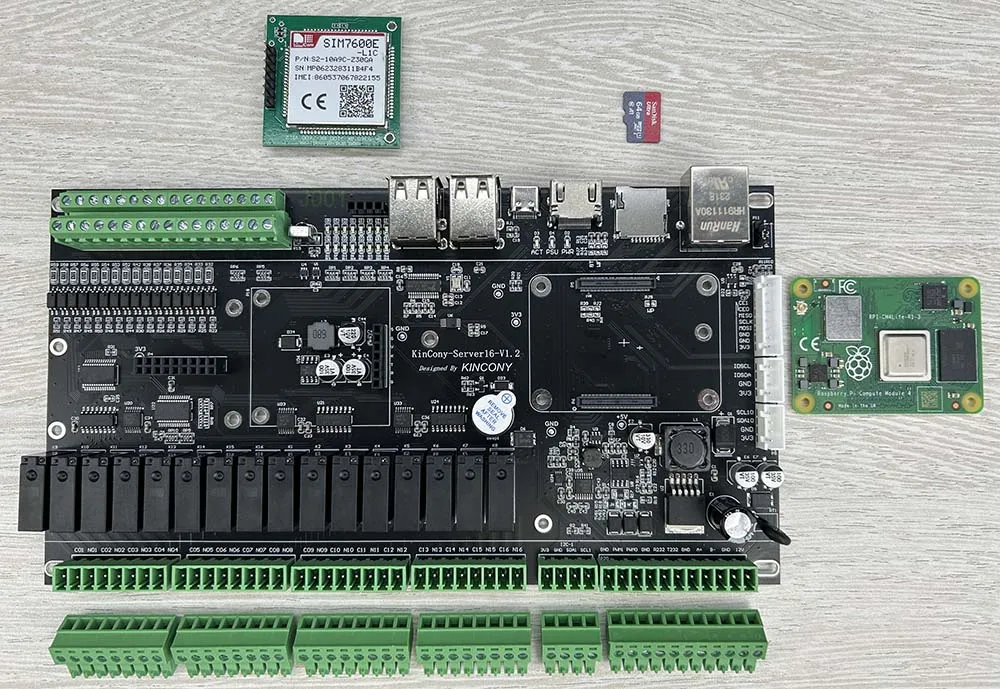

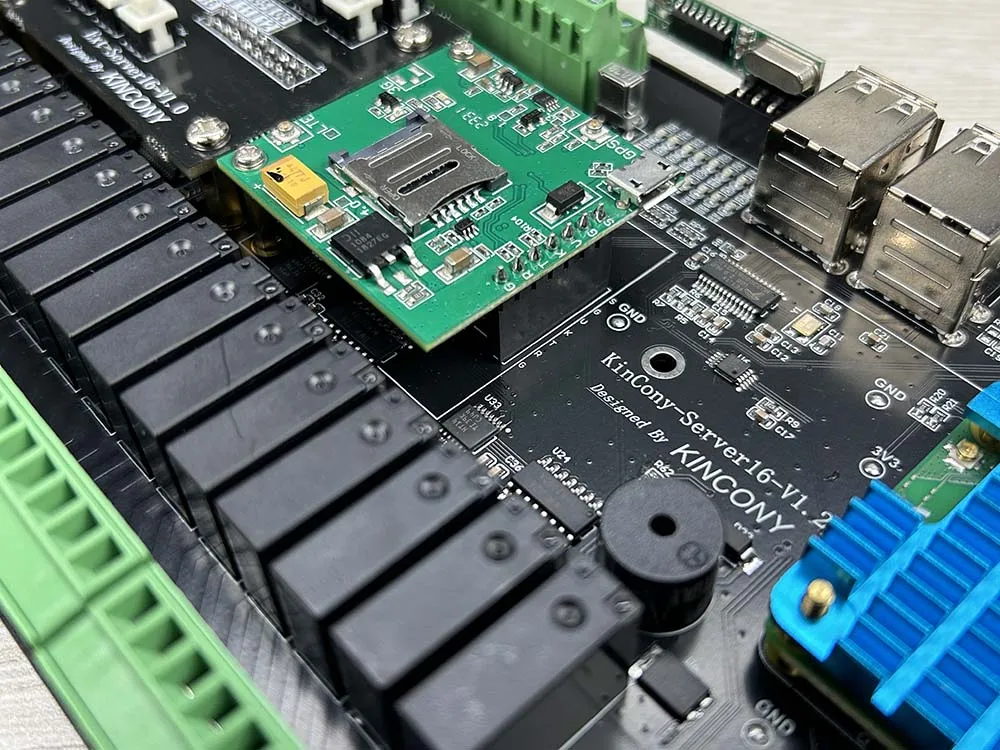

KinCony manufacturer Server-16 Home Automation Local Server Raspberry Pi CM4 Relay Module IoT Gateway

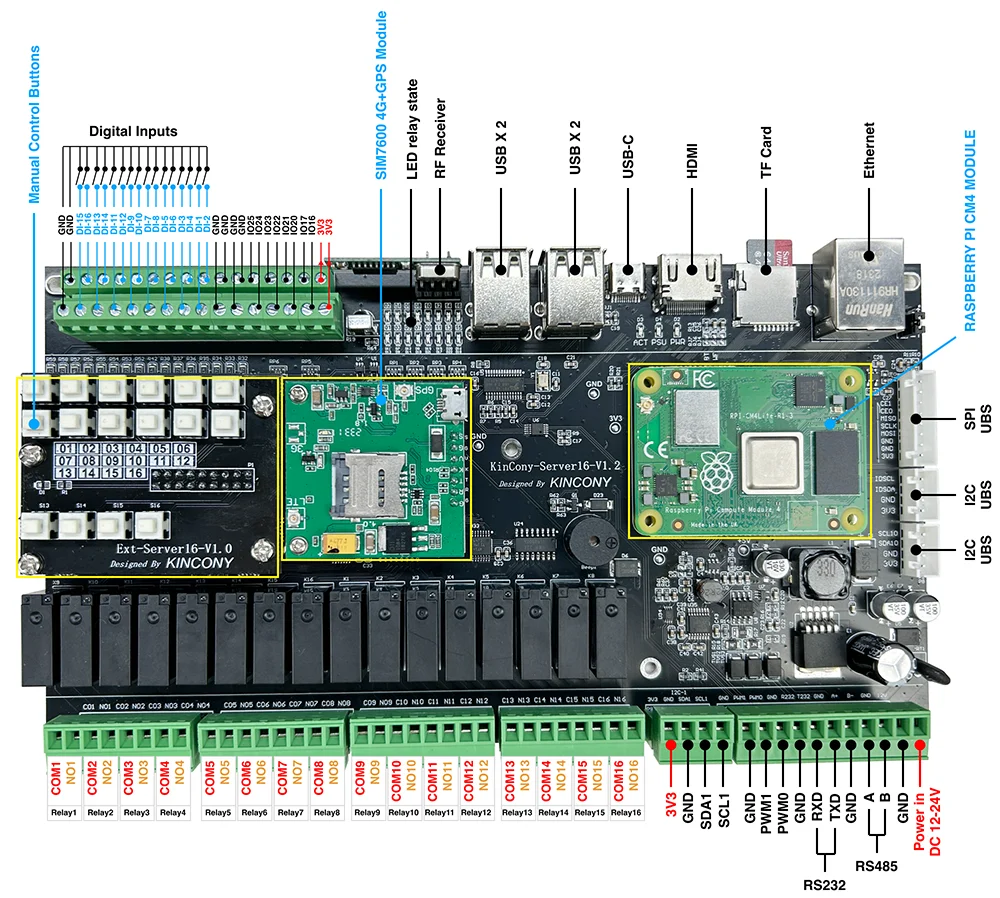

KinCony Server16 is a Raspberry Pi iot gateway for smart home automation and industrial automation control, It have 16 channel relay, many digital input ports with optocoupler isolation. The most important is integrated Raspberry pi CM4 module. CM4 manage relay, digital input ports, PWM, RF 433M reciever, IR receiver, SIM7600 4G module directly, easy use by Node-Red. It also support home assistant software.
Model No. KinCony Server16
Size: 215*117*40mm
Material: Metal shell
Work Temp: -20°C–70°C
Work Humidity: 20%–80%
Output Relay: COM, NO MAX current: AC250V/7A DC30V/7A for every channel
Digital Input with optocoupler isolation: 16 ports
Free GPIOs: 8 ports
433MHz RF Receiver: 1 port
IR Receiver: 1 port
PWM Output: 2 ports
Buzzer: 1 port
Manual Control Panel: 16 Buttons
Ethernet: 1 port
USB: 4 ports
HDMI: 1 port
USB-C: 1 port
TF Card: 1 port
SPI Bus:1 port
I2C Bus: 3 ports
RS232: 1 port
RS485: 1 por
use removable relay terminal
16 channel manual control buttons, if server broken , also can manual control relay’s coin without any software.
removable SIM7600 series 4G module, support 4G + GPS
support use 433MHz RF receiver module

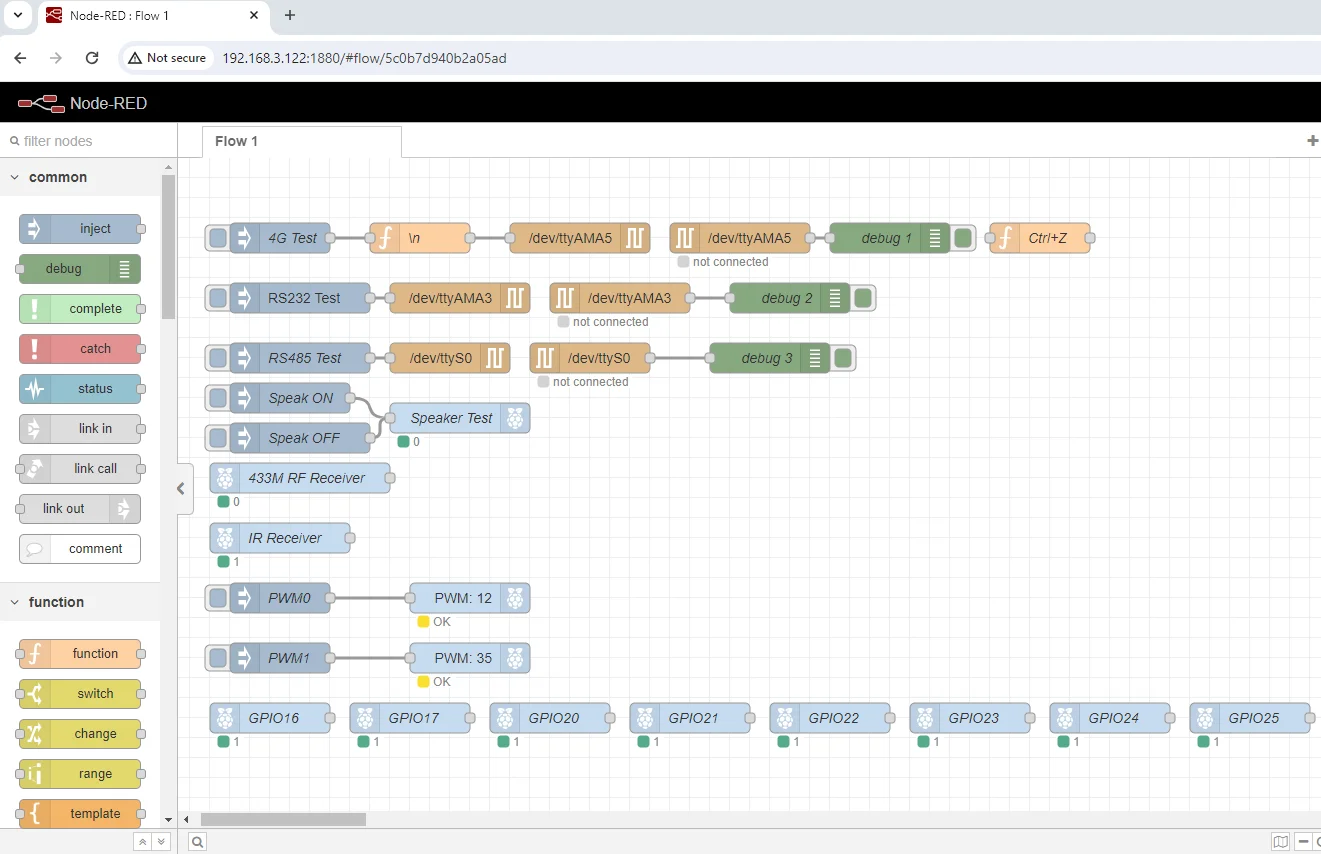

we supply Node-Red testing all PCB resource flows example.
Related technical information
———————————

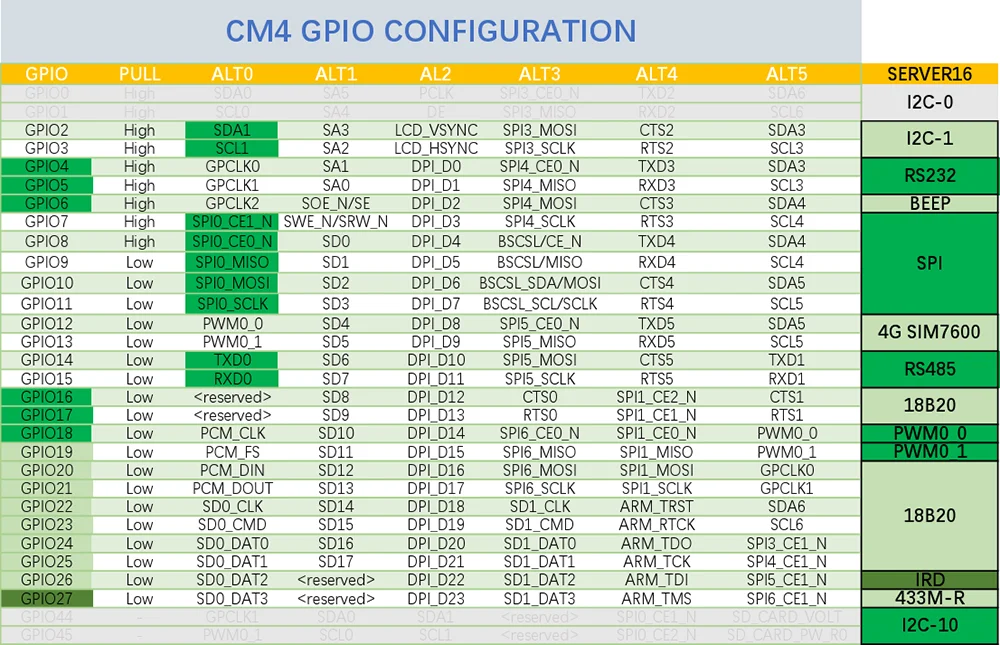

KinCony Server16 Raspberry Pi iot gateway CM4 GPIO pins define

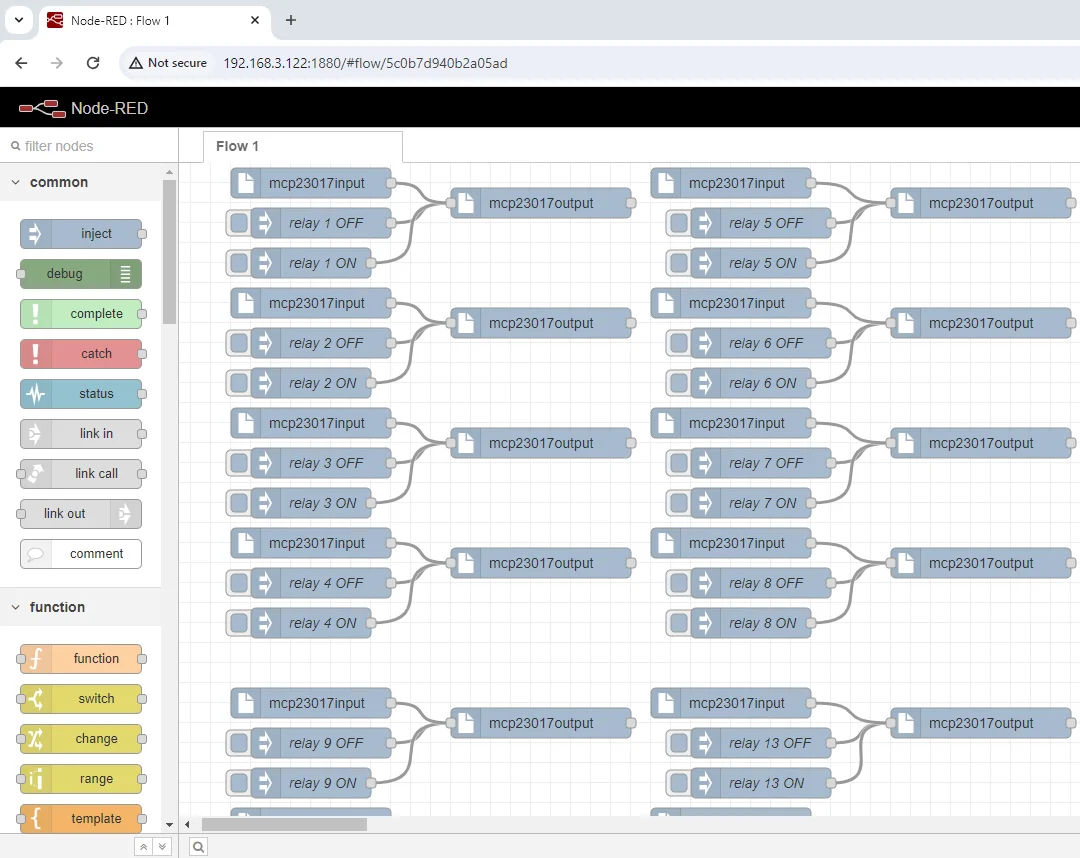

KinCony Server16 Node-Red testing flows demo example
Bundles
Bundle-A: Server-16(without CM4)
Bundle-B: Server-16(with CM4:CM4102000)
Bundle-C: Server-16(with CM4:CM4102000) + 433M RF receiver
Bundle-D: Server-16(with CM4:CM4102000) + 4G SIM7600 module
Bundle-E: Server-16(with CM4:CM4102000) + 4G SIM7600 module + 433M RF receiver
| Plug Type | any |
|---|---|
| Color | Bundle-E, Bundle-D, Bundle-C, Bundle-B, Bundle-A |
